Brightspace Data Sets for Discussions have a dependency on Discussions. If you turn this tool on and off during the data set query period, there may be unexpected or missing content in your data sets.

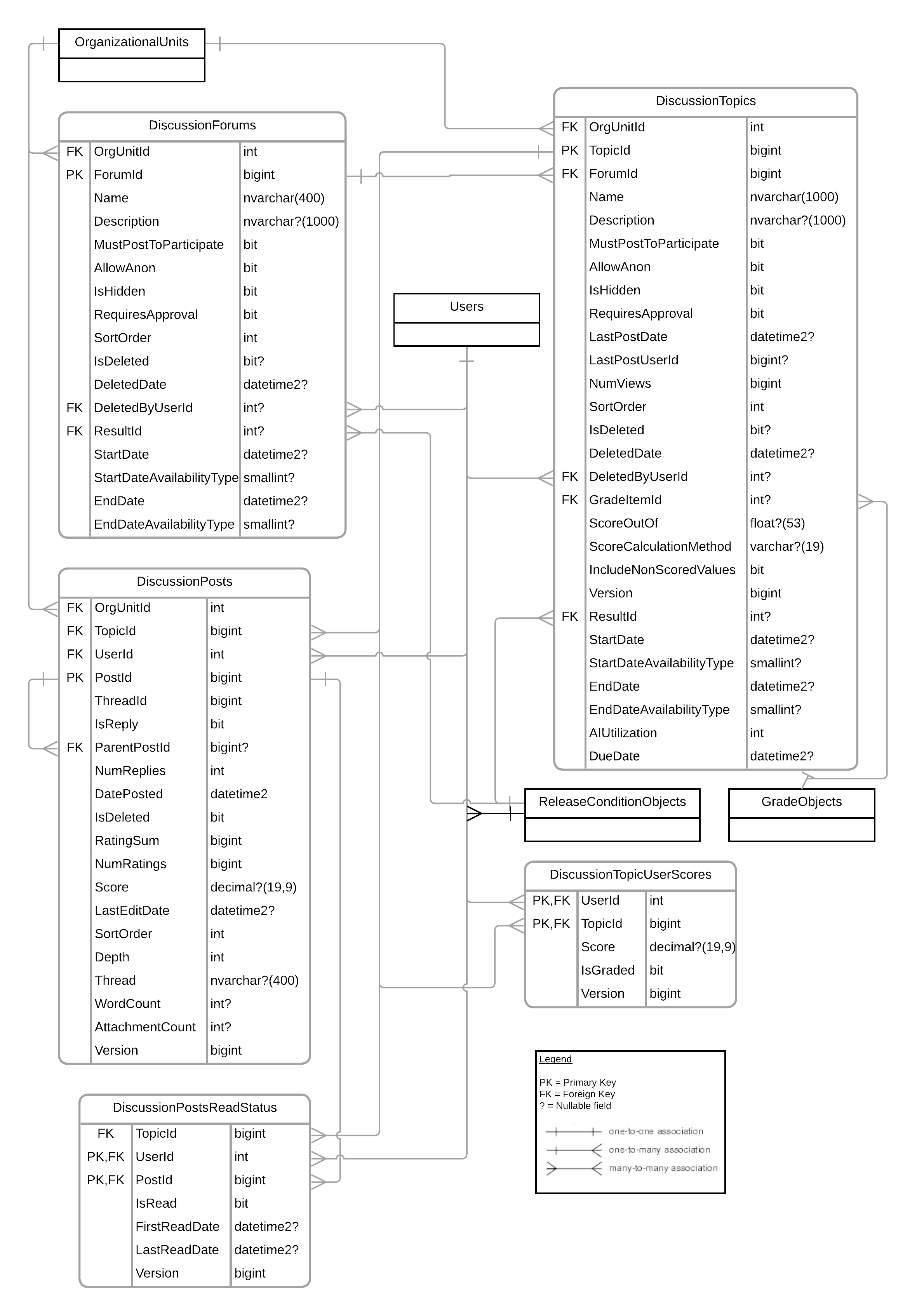

Entity Relationship Diagram
The following diagram shows the relationships between entities used to create Brightspace Data Sets for Discussions. To enlarge the diagram, right-click on the image and select Open image in a new tab.
About Availability Type
Availability type determines whether learners can view or access discussions. The possible values and their meanings are:
| Value |
Availability type |
|---|
| 0 |
AccessRestricted
|
| 1 |
SubmissionRestricted
|
| 2 |
Hidden
|
Discussion Forums
The Discussion Forums Brightspace Data Set returns discussion forums. Results are ordered from newest to oldest.
Version
History
|
Field
|
Description
|
Type
|
Size
|
Key
|
|---|
| 2.3 |
OrgUnitId
|
Unique org unit identifier.
|
int
|
4
|
FK
|
| 2.3 |
ForumId
|
Unique forum identifier.
|
bigint
|
8
|
PK |
| 7.18 / 8.4 - Changed description |
Name |
Name of the discussion forum. |
nvarchar |
400
|
|
| 2.4 - Updated |
Description |
Description of the discussion forum.
Field can be null.
|
nvarchar |
1000
|
|
| 2.3 |
MustPostToParticipate |
Indicates that a user must post in the discussion forum in order to participate in any discussion threads. |
bit |
1
|
|
| 2.3 |
AllowAnon |
Indicates whether there is anonymous posting permitted for the discussion forum. |
bit |
1
|
|
| 2.3 |
IsHidden |
Indicates whether the discussion forum is hidden. |
bit |
1
|
|
| 2.3 |
RequiresApproval |
Indicates that the discussion forum requires approval from a moderator before contributions to the forum are posted. |
bit |
1
|
|
| 2.3 |
SortOrder |
Display sort order used for the content objects |
int |
4 |
|
| 7.18 / 8.4 - Changed description |
IsDeleted
|
Indicates if the discussion forum is deleted.
Field can be null.
|
bit
|
1
|
|
| 2.3 |
DeletedDate
|
Date when the discussion forum was deleted (UTC).
Field can be null
|
datetime2
|
8
|
|
| 2.3 |
DeletedByUserId
|
User who deleted the discussion forum.
Field can be null.
|
int
|
4
|
FK
|
| 4.9 / 5.3 |
ResultId |
Unique release condition result identifier.
Field can be null.
|
int |
4 |
FK |
| 6.12 / 7.0 - Added |
StartDate |
First date when learners can post to topics in the forum (UTC).
Field can be null.
|
datetime2 |
8 |
|
| 7.7 - Updated Description |
StartDateAvailabilityType |
Before the StartDate, this type determines whether learners can view or access discussion topics within the forum. See About Availability type for details.
Field can be null.
|
smallint |
2 |
|
| 6.12 / 7.0 - Added |
EndDate |
Last date when learners can post to topics in the forum (UTC). |
datetime2 |
8 |
|
| 7.7 - Updated Description |
EndDateAvailabilityType |
After the EndDate, this type determines whether learners can view or access discussion topics within the forum. See About Availability type for details.
Field can be null.
|
smallint |
2 |
|
Discussion Posts
The Discussion Posts Brightspace Data Set returns details on discussion posts, ordered from newest to oldest.
The Discussion Posts Brightspace Data Set contains data from 1 January 2021 onwards and adheres to the default system limit of 150 million rows of the most recent data.
Note: You can extract the body of the discussion post through the API.
Version
History
|
Field
|
Description
|
Type
|
Size
|
Key
|
|---|
| 1.0 |
OrgUnitId
|
Unique org unit identifier
|
int
|
4
|
FK
|
| 2.5 / 3.0 - Added FK |
TopicId
|
Unique topic identifier
|
bigint
|
8
|
FK
|
| 1.0 |
UserId
|
Unique user identifier
|
int
|
4
|
FK
|
| 1.0 |
PostId
|
Unique post identifier
|
bigint
|
8
|
PK
|
| 1.0 |
ThreadId
|
Unique thread identifier
|
bigint
|
8
|
|
| 1.0 |
IsReply
|
If post is a reply
|
bit
|
1
|
|
| 1.0 |
ParentPostId
|
Parent post Id.
Field can be null.
|
bigint
|
8
|
FK
|
| 1.0 |
NumReplies
|
Number of replies to a post
|
int
|
4
|
|
| 1.0 |
DatePosted
|
Date the post was made (UTC).
|
datetime2
|
8
|
|
| 1.0 |
IsDeleted
|
Is post deleted
|
bit
|
1
|
|
| 1.0 |
RatingSum
|
Sum of all ratings for a post
|
bigint
|
8
|
|
| 1.0 |
NumRatings
|
Number of ratings for a post
|
bigint
|
8
|
|
| 4.8 / 5.2 - Updated column size |
Score
|
Users score on the post (if graded).
Field can be null.
|
decimal
|
19, 9
|
|
| 2.2 |
LastEditDate |
Indicates the date when the discussion post was edited (UTC).
Field can be null.
|
datetime2 |
8 |
|
| 2.2 |
SortOrder |
Display sort order used for the content objects |
int |
4 |
|
| 2.5 / 3.0 |
Depth |
Indicates the number of nested hierarchical levels in the discussion post. |
int |
4 |
|
| 3.7 / 4.2 |
Thread |
Discussion thread name.
Field can be null.
|
nvarchar |
400 |
|
| 5.6 |
WordCount |
Indicates the number of words counted in the discussion post.
Field can be null.
|
int |
4 |
|
| 5.6 |
AttachmentCount |
Indicates the number of attachments associated with a discussion post.
Field can be null.
|
int |
4 |
|
| 8.11 / 9.0 |
Version |
Indicates the version of the row. This information is used to determine which table row occurred first, similar to the way time stamps function in other data sets. |
bigint |
8 |
|
Discussion Posts Read Status
The Discussion Posts Read Status Brightspace Data Set returns details on discussion posts read by users for your org units.
The Discussion Posts Read Status Brightspace Data Set contains data from 1 January 2021 onwards and adheres to the default system limit of 150 million rows of the most recent data.
Version
History
|
Field
|
Description
|
Type
|
Size
|
Key
|
|---|
| 1.0 |
TopicId
|
Unique topic identifier
|
bigint
|
8
|
FK
|
| 1.0 |
UserId
|
Unique user identifier
|
int
|
4
|
PK, FK
|
| 1.0 |
PostId
|
Unique post identifier
|
bigint
|
8
|
PK, FK
|
| 1.0 |
IsRead
|
If post has been read
|
bit
|
1
|
|
| 1.0 |
FirstReadDate
|
First time the post was read (UTC).
Field can be null.
|
datetime2
|
8
|
|
| 1.0 |
LastReadDate
|
Latest date when post was read (UTC).
Field can be null.
|
datetime2
|
8
|
|
| 6.7 |
Version |
Indicates the version of the row. This information is used to determine which table row occurred first, similar to the way time stamps function in other data sets. |
bigint |
8 |
|
Discussion Topics
The Discussion Topics Brightspace Data Set returns discussion topics. Results are ordered from newest to oldest.
Version
History
|
Field
|
Description
|
Type
|
Size
|
Key
|
|---|
| 2.3 |
OrgUnitId
|
Unique org unit identifier.
|
int
|
4
|
FK
|
| 2.3 |
TopicId
|
Unique topic identifier.
|
bigint
|
8
|
PK |
| 2.3 |
ForumId |
Unique discussion forum identifier. |
bigint
|
8
|
FK |
| 2.4 |
Name |
Name of the discussion topic. |
nvarchar |
1000 |
|
| 2.4 |
Description |
Description of the discussion topic.
Field can be null.
|
nvarchar |
1000 |
|
| 2.3 |
MustPostToParticipate |
Indicates that a user must post in the discussion topic in order to participate in any discussion threads. |
bit |
1
|
|
| 2.3 |
AllowAnon |
Indicates whether there is anonymous posting permitted for the discussion topic. |
bit |
1
|
|
| 2.3 |
IsHidden |
Indicates whether the discussion topic is hidden. |
bit |
1
|
|
| 2.3 |
RequiresApproval |
Indicates that the discussion topic requires approval from a moderator before contributions to the forum are posted. |
bit |
1
|
|
| 2.3 |
LastPostDate |
Indicates the last time a post was made to the discussion topic (UTC).
Field can be null.
|
datetime2 |
8 |
|
| 2.3 |
LastPostUserId |
Indicates the last user who made a post to the discussion topic.
Field can be null.
|
bigint |
8 |
|
| 2.3 |
NumViews
|
Indicates the number of views on the discussion topic.
|
bigint
|
8
|
|
| 2.3 |
SortOrder |
Display sort order used for the content objects. |
int |
4 |
|
| 2.3 |
IsDeleted
|
Indicates if the discussion topic is deleted.
Field can be null.
|
bit
|
1
|
|
| 2.3 |
DeletedDate
|
Date when the discussion topic was deleted (UTC).
Field can be null.
|
datetime2
|
8
|
|
| 2.3 |
DeletedByUserId
|
User who deleted the discussion topic.
Field can be null.
|
int
|
4
|
FK
|
| 3.8 / 4.3 |
GradeItemId |
Unique grade identifier.
Field can be null.
|
int |
4 |
FK |
| 5.7 / 6.0 - Changed Column Size |
ScoreOutOf |
Topic score used to evaluate the discussion thread.
Field can be null.
Note: Score can exceed ScoreOutOf.
|
float |
53 |
|
| 3.8 / 4.3 |
ScoreCalculationMethod |
Method used to calculate score. Strings are predefined, with the following values:
Average - Calculates the score from the average score of each post in the topic made by a user.
Max - Calculates the score based on the maximum score of any one post in the topic for a user.
Min - Calculates the score based on the minimum score of any one post in the topic for a user.
Mode Max - Given the number of posts, selects the score that is repeated the most. If there is a tie, it takes the highest score.
Mode Min - Given the number of posts, selects the score that is repeated the most. If there is a tie, it takes the lowest score.
Sum - Calculates the score from the sum of scores on each post in a topic for a user.
Blank value (null) - The score is not calculated based on the scores of each post (Manual updates). |
varchar |
19 |
|
| 3.8 / 4.3 |
IncludeNonScoredValues |
Indicates whether to include non-scored values.
True posts that have not been scored are scored as 0. Otherwise, posts without a score are not included in the score aggregate (defined in the ScoreCalculationType). |
bit |
1 |
|
| 3.8 / 4.3 |
Version |
Indicates the version of the row. This information is used to determine which table row occurred first, similar to the way time stamps function in other data sets. |
bigint |
8 |
|
| 4.9 / 5.3 |
ResultId |
Unique release condition result identifier.
Field can be null.
|
int |
4 |
FK |
| 6.12 / 7.0 - Added |
StartDate |
First date when learners can post to the topic (UTC).
Field can be null.
|
datetime2 |
8 |
|
| 7.7 - Updated Description |
StartDateAvailabilityType |
Before the StartDate, this type determines whether learners can view or access the discussion topic. Refer to About Availability type for details.
Field can be null.
|
smallint |
2 |
|
| 6.12 / 7.0 - Added |
EndDate |
Last date when learners can post to the topic (UTC).
Field can be null.
|
datetime2 |
8 |
|
| 7.7 - Updated Description |
EndDateAvailabilityType |
After the EndDate, this type determines whether learners can view or access the discussion topic. Refer to About Availability type for details.
Field can be null.
|
smallint |
2 |
|
| 9.9 |
AIUtilization |
Indicates whether D2L Lumi (Brightspace AI) capabilities were used and the level of AI involvement. Possible values:
0 - No AI capabilities were involved.
1 - Generated by AI and reviewed by a human.
2 - Generated by AI and edited by a human.
3 - Assisted or uplifted by AI.
|
int |
4 |
|
Discussion Topic User Scores
The Discussion Topic User Scores Brightspace Data Set returns the scores a user received for a discussion topic.
Version
History
|
Field
|
Description
|
Type
|
Size
|
Key
|
|---|
| 1.0 |
UserId
|
Unique user identifier
|
int
|
4
|
PK, FK
|
| 1.0 |
TopicId
|
Unique topic identifier
|
bigint
|
8
|
PK,
FK
|
| 4.8 / 5.2 - Updated column size |
Score
|
Topic score.
Field can be null.
|
decimal
|
19, 9
|
|
| 1.0 |
IsGraded
|
Indicates if the topic was graded
|
bit
|
1
|
|
| 4.6 / 5.0 |
Version |
Indicates the version of the row. This information is used to determine which table row occurred first, similar to the way time stamps function in other data sets. |
bigint |
8 |
|
